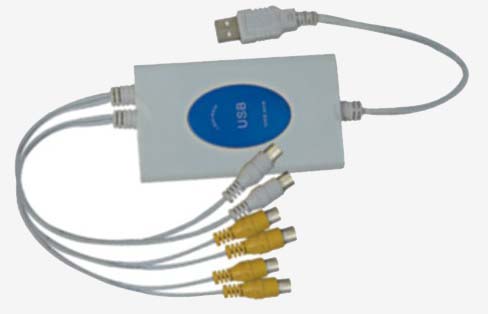

| USB
Portable DVR |
|
|
|
|
| Features |
- 4 channels video input in one
card, the maximum display/recording
rate is 25 fps under PAL format,
and 30 fps under NTSC format
- 4 screen display modes are available
- Multi alarm triggering method:
sensor, motion, video loss, and
HDD space shortage
- Support schedule recording mode,
recycling recording method available
- MPEG4 video compression format.
5 level recording quality options
available, and the recording frame
rate range from 1 to 30 fps adjustable
for each channel
- Support multi-channel playback,
searching by time/date and recording
events, images can be zoom/capture/save/print/backup
- Support remote surveillance and
PTZ control through web browser,
support dynamic domain name
- Remote playback function
- Configurable auto reboot function
for preventing PC deadlock
- Auto mail
|
| System
Requirements |
|
|
|
|
| OS Supported |
Windows 2000/Wondows
XP |
| CPU |
Intel Pentium III 800 (minimum)
|
| RAM |
256M (minimum) |
| HDD |
80GB (recommended) |
| VGA |
nVIDIA GeForce
II MX200 32M |
|
|
|
| Specifications |
|
|
|
|
| Input Type |
BNC |
| Video Input |
4 Cams
|
| Audio Input |
4 Ch PC Audio |
| Video Output |
1 Ch VGA Video Output |
| Display Rate |
25 fps (PAL), 30fps (NTSC) |
| Recording Rate |
25 fps (PAL), 30fps (NTSC) |
| Compression Format |
MPEG4 |
| Video Resolution |
704x576,352x288(PAL)
640x480,320x240(NTSC)
|
| Recorder Media |
HDD, USB Disk, ZIP, CD-R/W |
| Record Mode |
Motion/Sensor/Schedule/Manual |
| Network |
TCP/IP |
| I/O Device |
4 Ch Hi/Low Input, 1 Ch Relay Output |
| PTZ |
Protocol Configurable, Remote Control Capability |
| Remote Software |
Support Internet Explorer Web Browser |
|
|
