| Car
Night Vision |
 |
|
|
 |

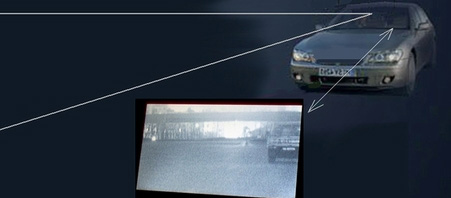

This night vision device can be
used by cars, tanks, ships etc.
It can look from 10m to 200 m target
or over during nights. It works with
non- visible infrared light in real
dark.

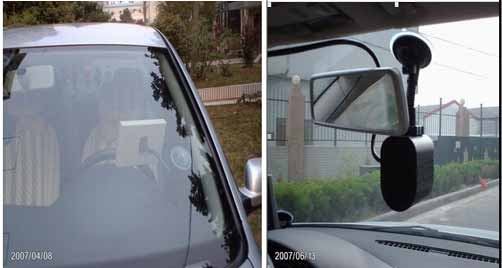

This Night Vision Device is very
easy to setup. It doesn't need any
special skills or tools and can be
installed
with in 1-2 minutes.
This night vision for car is having
the lowest prices in the world.
Its biggest beneficiary are the
drivers as the vision is much wider
which provide them more time to apply
brake and react.
This car night vision provides great
assistance to the drivers who drive
at night.
The system provides 50 times clarity
than human eyes.
This system assists during high
lights in cars; it's available only
when the high lights or brake lights
are on.
|
| |
|
|
|
|
Specifications |
|
|
|
|
|
| Monitor |
7"
LCD |
Voltage |
DC
12V |
| Power |
12
W |
Output |
PAL
/ NTSC |
| Distance |
10
~ 200 (m) |
Resolution |
420
TVL |
| Wave |
450
~ 1000 (nm) |
Life |
>
5 years |
| Packaging |
hard
paper |
MTBF |
>
5000 H |
|
|
|
|
|
|
|
Models |
|
|
|
|
|
| Model |
NV-C1 |
NV-C2 |
| Lens
Focus |
35
mm |
12
mm |
| Image |
B/W |
Colour |
| View
Angel |
5 |
10 |
| Image
Display |
Simulative |
Simulative |
| Weight |
1.3
Kg |
1
Kg |
| Setting |
front
glass in car |
Top
of car |
|
|
|
|
|
|
 |
|
|
|
|
|
Product Comparison |
|
|
|
|
|
| Comparatives |
WTPL |
BMW |
Benz |
| View
point height |
1.4m |
0.2m |
1.4m |
| View
angle |
5
/ 10 |
30 |
30 |
| Monitor
|
7Ħħ |
5Ħħ |
6Ħħ |
| Image
display |
Simulative |
Simulative |
Digital |
| Monitor
position |
Front
glass |
panel |
panel |
| Camera
position |
rearview
mirror |
Front
bumper |
driving
table |
| Camera
direction |
Can
adjust |
Fix |
Fix |
| Image
differentiate |
480
line |
320
line |
420
line |
| Image |
B/W |
negative |
B/W |
| Effect
distance |
200
m |
50
m |
50
m |
| Work
wave |
0.4~1um |
8~14um |
0.4~1um |
| Camera
kind |
CCD |
TIS |
CCD |
| Price
coefficient |
1 |
3 |
2 |
|
|
|
|
|
|
|
Packing List |
|
|
|
|
|
| Name |
Qty |
Name |
Qty |
| Night
vision |
1 |
Acetabula |
2 |
| AV
line |
1 |
LCD |
1 |
| Power
line |
1 |
Manual |
1 |
|
|
