Guard Camera / Baby Monitor with Inbuilt
Recorder |
|
|
 |
| Overview
|
|
|

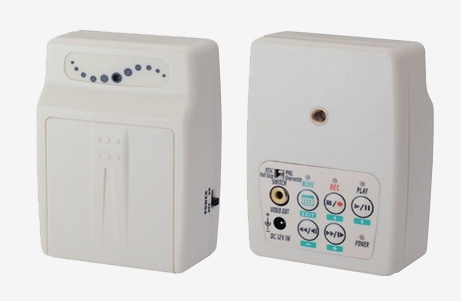

A
small portable recording device built-in
a motion-activated color pinhole camera
at Hi-resolution. |
|
|
|
| Features
|
A small portable device with built-in
Hi-resolution pinhole camera.
When set on motion recording the
unit will detect movement and record
to the onboard memory. Recording
auto resumes after power loss and
back.
Automatic image control functions
Supports flexible playback mode:
Normal Playback, Rewind, Fast Forward,
and Step Playback.
The selectable three level image
qualities and frame rate.
Users - friendly and compact - size
interface enable easy recording setup.
Use anywhere ( Supports DC 12V or
4 x AA batteries )
|
|
|
| Applications
|
Records events / theft
Baby/child/Patient/Pet monitoring
Door entrance monitoring
Guest/visitor & Store/business/restaurant
monitoring
Home / Warehouse/ Garage/ Car monitoring
& security ( The unit looks like an
air freshener but can be hidden
in almost any thing including books,
towels, under furniture etc. )
|
The applications for this unit truly
are endless. It solves the problem of
pulling cables to the camera because
the recorder is built right in. Operating
on batteries you can simply turn the
unit on, place it to view the area you
want to record and walk away. When set
on motion recording the unit will detect
movement and record to the onboard memory.
When the movement stops the unit stops
recording. The system can be set to
shut off when the memory is full or
to over right the oldest clips and continue
to record. To play the video recording
back you simply connect it to your TV
with an RCA cable and play back the
clear video with the controls on the
back of the unit. It does not get any
easier! |
|
|
|

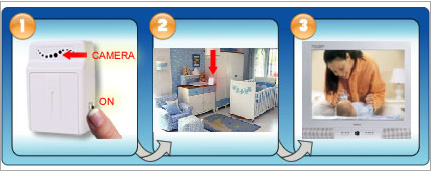

| Easy
3 Step Record and Playback
|
|
|
 |
| |
| Turn
on the Mini-Spycam DVR by
using switch. |
|
| Place
Mini-Spycam DVR in desired
location and let it record. |
|
| Plug
the device later into any
TV for easy viewing. |
|
|
|
|
|
| The
check list of the package |
Main unit x 1
Video cables x 2
Power adapter x 1
Camera bracket 1
User manual x 1
|
|
|
| Specifications
|
|
|
Video
Compression |
MPEG4 |
Device |
1/6” Color
CMOS sensor |
Video
Format |
NTSC / PAL |
S/N
Ratio |
45dB |
Electronic
Shutter |
Auto |
Lens
Furnished |
Board Lens 3.62mm
/ F2.8 |
White
Balance |
Auto |
Gain
Control |
Auto |
| Recording |
Resolution |
VGA ( 640x480)@12
IPS / QVGA ( 320x240 )@30IPS |
Quality |
High / Medium /
Low |
Mode |
Manual, Continuous,
Motion Detection |
Storage
Capacity |
Secure Digital
(SD) Card |
Record
Time
(512 MB)
|
Quality
Level |
320x240@30 IPS
/ 640 x 480@12 IPS |
Low |
550 / 400 minutes |
Medium |
270 / 240 minutes |
| Hight |
220 / 125 minutes |
| Memory
Full |
Selectable Function: Full Stop
/ Overwrite |
| Playback
Mode |
Forward / Rewind: x1 / x4 /
x8 / x16 / x32, Pause and Step |
| Search
Method |
By Date, Time |
| Motion
Detection |
Full Screen/ Adjustable Detection
Sensitivity |
| On Screen
Display |
Mode / Date / Time / Status |
| Video
Output |
1 Vp-p / 75 Ohms |
| Power
Supply |
DC12V/AC110V or DC12V/AC230V
(option) or 4xAA Batteries |
| Battery Life |
( NiMH 2100mA ) |
4 hours and 45 minutes |
| Power
Consumption |
2.0W max. |
| Dimensions
(WxHxD) |
82x134x71 mm |
|
| |
|
