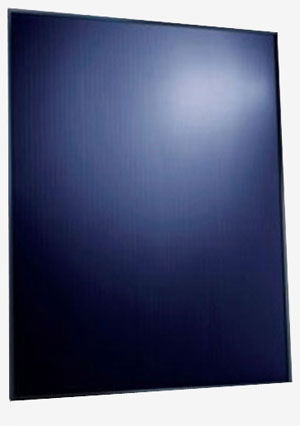

It is a thin film solar module with
amorphous silicon (a-Si) Single Jn
and Microcrystalline solar devices
monolithically integrated. The opto-electrical
specifications shown below are stabilized
values being measured at Standard
Test Conditions, Irradiance: 1000W/m2,
Spectrum: AM1.5 at 25 degree C, while
Voc or Isc can be customized.
Model
SG80S
SG85S
SG90S
SG95S
SG100S
Maximum
Power (Pm)
80W
85W
90W
95W
100W
Operating
Voltage (Vmp)
68.0V
68.9V
69.7V
70.7V
71.5V
Operating
Current (Imp)
1.18A
1.24A
1.29A
1.35A
1.40A
Open
Circuit Voltage (Voc)
93.5V
94.3V
95.0V
95.8V
96.5V
Short
Circuit Current (Isc)
1.49A
1.57A
1.64A
1.71A
1.77A
Temperature
Coefficient of Pm
-0.19%/K
Temperature
Coefficient of Vmp
-0.31%/K
Temperature
Coefficient of Isc
0.07%/K
Maximum
System Voltage
1000V
Fixture
None

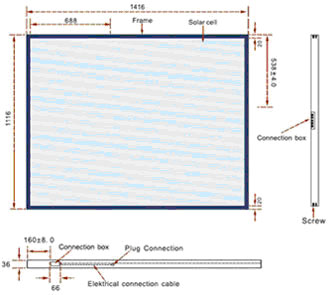

Dimensions
1100mm×1400mm×7mm
Weight
23.9kg
Temperature
Range
-40ºC~85ºC
Note
All electrical rating with a tolerance
of ±10%, unless specified otherwise.
Product warranty: Free from defects
in material and workmanship for 2
years.
Power warranty: maintain more than
80% of minimum rated power for 20
years and more than 90% of minimum
rated power for 10 years.
Other useful information
Output of electricity in the first
1,000 hours of operation will exceed
the specified data around 20% for
Pm, 9% for Vmp, and 12% for Imp..
