| Polycrystalline Solar Modules |
|
|
|
 |
|
|
|
We offer a range of small, medium and large polycrystalline solar modules designed for a range of requirements.

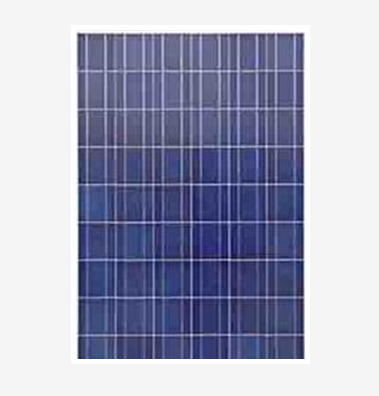

Among the most popular polycrystalline solar modules is the P Series PV Modules. It is an array of polycrystalline silicon solar modules made with the highest quality polycrystalline cells, from 200W to 230W. Each module is designed to perform under the harshest weather conditions and comes with a product warranty of 20 to 25 years..
|
|
|
|
| Specifications
|
|
|
| Tolerance |
+/-
3% |
| Cell |
Polycrystalline silicon solar cells (156 x 156mm) |
| N0.
of Cells |
60 (10 x 6) |
| Dimension
of Modules (mm) |
1650 x 990 x 40 |
| Weight
(kg) |
25.5 |
|
|
|
| Limits
|
|
|
| Operating
Temperature |
-40~+85. |
| Storage
Temperature |
-40~+85. |
| Maximum
System Voltage |
1000
VDC max. |
| Hail
Impact |
Diameter
of 28mm with impact speed of 86km/h
|
|
|
|
| Temperature
and Coefficients |
|
|
| NOCT |
48C+/-2. |
| Voltage
temperature coefficient(%/K)
|
-0.35 |
| Current
temperature coefficient(%/K)
|
0.05 |
| Power
temperature coefficient(%/K)
|
-0.45 |
|
|
|
| Characteristics
|
|
|
| Model |
SGM-200P |
SGM-210P |
SGM-220P |
| Max-power voltage Vmp (V) |
29.2 |
29.4 |
29.41 |
| Max-power current Imp (A) |
6.85 |
7.14 |
7.48 |
| Open-circuit voltage Voc (V) |
36.5 |
36.69 |
36.9 |
| Short-Circuit Current Isc (A) |
7.28 |
7.6 |
7.93 |
| Max-power Pm(W) |
200 |
210 |
220 |
|
|
|
| Model |
SGM-230P |
| Max-power
voltage Vmp (V) |
29.8 |
| Max-power
current Imp (A) |
7.72 |
| Open-circuit
voltage Voc (V) |
37.31 |
| Short-Circuit
Current Isc (A) |
48.19 |
| Max-power
Pm(W) |
230 |
|
|
|
| STC: Irradiance
1000W/m2, Module temperature 25, AM=1.5 |
|
