| Monocrystalline
Solar Modules |
|
|
|
 |
|
|
|
We offer a range of small, medium
and large monocrystalline solar modules
designed for a range of requirements.

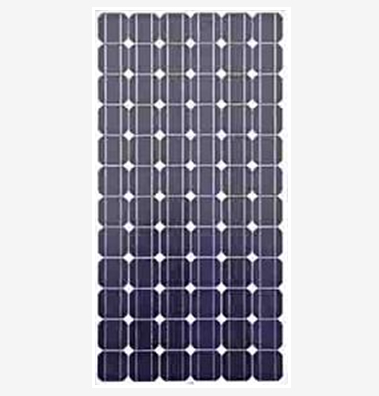

Among the most popular monocrystalline
solar modules is the D-Series PV Modules.
It is an array of monocrystalline
silicon solar modules made with the
highest quality monocrystalline cells,
from 160W to 185W. Each module is
designed to perform under the harshest
weather conditions and comes with
a product warranty of 20 to 25 years.
|
|
|
|
| Specifications
|
|
|
| Tolerance |
+/-
3% |
| Cell |
Monocrystalline
silicon solar cells (125 x 125mm)
|
| N0.
of Cells |
72
(12 x 6) |
| Dimension
of Modules (mm) |
1581
x 809 x 40 |
| Weight
(kg) |
15.5 |
|
|
|
| Limits
|
|
|
| Operating
Temperature |
-40~+85. |
| Storage
Temperature |
-40~+85. |
| Maximum
System Voltage |
1000
VDC max. |
| Hail
Impact |
Diameter
of 28mm with impact speed of 86km/h
|
|
|
|
| Temperature
and Coefficients |
|
|
| NOCT |
48C+/-2. |
| Voltage
temperature coefficient(%/K)
|
-0.34. |
| Current
temperature coefficient(%/K)
|
0.09 |
| Power
temperature coefficient(%/K)
|
-0.37
|
|
|
|
| Characteristics
|
|
|
| Model |
SGM-160D |
SGM-165D |
SGM-170D |
| Max-power voltage Vmp (V) |
34.5 |
35.4 |
35.8 |
| Max-power current Imp (A) |
4.64 |
4.66 |
4.75 |
| Open-circuit voltage Voc (V) |
41.75 |
43.6 |
43.32 |
| Short-Circuit Current Isc (A) |
5.32 |
5.08 |
5.38 |
| Max-power Pm(W) |
160 |
165 |
170 |
|
|
|
| Model |
SGM-175D |
SGM-180D |
SGM-185D |
| Max-power voltage Vmp (V) |
36.1 |
36.2 |
36.2 |
| Max-power current Imp (A) |
4.85 |
4.97 |
5.11 |
| Open-circuit voltage Voc (V) |
43.68 |
43.8 |
44.8 |
| Short-Circuit Current Isc (A) |
5.49 |
5.48 |
5.51 |
| Max-power Pm(W) |
175 |
180 |
185 |
|
|
|
| STC: Irradiance
1000W/m2, Module temperature 25, AM=1.5 |
|
