Minelab

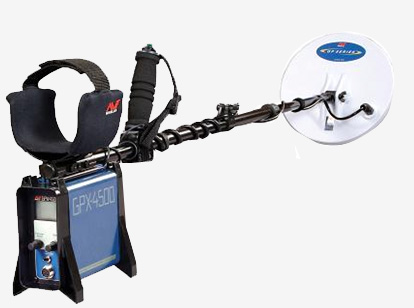

GPX-4500 Ultimate Gold / Metal Detector
|
|
|
|
Description |
|
|
Minelab GPX-4500, A creation worth its
weight in Gold! |
|
|
Minelab
GPX 4500 metal detector is the ultimate
gold prospecting detector with the
new added features that makes it stronger
and more versatile than ever before.
Incorporating new SETA gold nuggett
hunting technology, it is quieter
and more immune to interference, so
that it is a real pleasure to use.
No matter if you've never picked up
a detector before, the GPX 4500 has
automatic functions and pre-set Search
Modes that make you an prospecting
expert in a matters of moments. Quieter
threshold, louder target signals,
improved discrimination, and more
versatile, the GPX-4500 is the gold
detector that gives the best results.
|
|
|
|
Features
|
|
|
Ground
Balance OFF for neutral soils.
In addition to
Normal and Specific ground balance
options, a third option is now available
in the minelab gpx 4500 detector.
In GB Off the ground balance circuit
is by-passed to give extra deep detection.
This is a useful feature in very benign
low mineralised, or salt saturated
soils. This setting will also work
well for treasure or relic hunters
in loam or sandy soils.
BACKLIGHT, Lets you read the
minelab gpx 4500 metal detector LCD
menu in any light, day or night. The
backlight has adjustable time-out
to preserve battery life
STABILIZER for the smoothers
threshold. The stabilizer function
is a fine tuner that gives the operator
full control over the threshold stability.
It is tied in with the audio processing
circuit, so should be used in conjunction
with the four Audio Type options.
In quiet conditions, increase the
Stabilizer control and faint target
signals will be more obvious. Turing
it down will provide you with a smoother
threshold, improving your ability
to pick up the faintest of signals.
TARGET VOLUME
In addition to the Volume Limit control,
which prevents signals from being
too loud, the new Target Volume allows
you to increase the strength of softer
target signals. This is useful for
very windy conditions, for people
suffering from hearing loss, and to
adjust the audio volume when using
external speakers. The Target Volume
can also be used as an audio boost
in mild soils, and can be used to
reduce or smooth out ground noise
signals in highly mineralised soils.
This is a powerful feature, and will
work in conjunction with the Stabilizer
control, giving you the ultimate in
fine tuning ability.
IMPROVED DISCRIMINATION that
gives you access to the worst of trashy
ground.
When detecting in a high-trash area
like a mining site or a campground,
the Iron Reject function allows the
operator to set the desired level
of discrimination, from cautious to
aggressive. This combined with the
specially programmed Hi Trash search
mode makes areas of extreme junk well
worth a search. Also great for the
specialist Relic and Jewellery hunter
who demands the best, and wants to
recover the smallest and deepest targets
invisible to most treasure detectors.
BUILT-IN AMPLIFIER so you can
hear soft target signals from deeper
nuggets, more easily.The newly designed
Li-lon battery pack now has an audio
amplifier built in, allowing you to
use an external speaker, without the
need for any external booster. Its
uses smart circuitry, which automatically
senses a correctly wired speaker,
and applies an increase in Audio Gain.
The design of the amplifier and the
use of high-quality low noise components
ensure the signal response is clear
and crisp, without the added background
hum of some boosters. |
|
|
|
Specifications
|
|
|
Length |
Maximum |
1300mm |
Minimum |
1100mm |
Weight |
Complete with 11"
coil (excluding battery &
accessories) |
2400g |
Configuration |
Shaftmount:
2-piece shaft |
Technology |
Dual Voltage
(DVT), Multi-Period Sensing
(MPS) and Smart Electronic Timing
Alignment (SETA |
Transmission |
Bi-level Pulse
Induction |
Search
System |
Motion Detector |
Headphones |
Supplied 1/4"
socket
Koss; 100ohm
|
Coil
(Standard) |
11" Double
D |
|
|
|
Battery
|
|
|
Lithium Ion |
9.2ah:
8.0v |
Weight |
Weight |
Battery running
time |
Up to 12 hours |
Battery Charging
System |
Mains & 12v
vehicle Plug Packs |
|
|
|
Controls
|
|
|
On / Off |
Spring
loaded toggle |
Factory Preset
Restore |
Hold On / Off |
Threshold |
1 turn control |
Search Modes |
Custom / General
/ Deep |
Custom
Mode |
Hi Mineral /
Hi Trash / Patch / Test |
Soil / Timings |
Sensitive /
Normal / Salt |
Special
Timings |
Salt-Coarse
/ Sensitive Extra Sensitive
Smooth / Sharp |
Backlight |
Off, 1-10 |
Ground Balance |
Fixed / Tracking |
Ground Balance
Speed |
Slow / Medium /
Fast |
|
|
|
Specifications
|
|
|
Ground Balance
Type |
General
/ Specific / GB Off |
Coil / Rx |
Double-D / Mono
/ Cancel |
(E.M) Tuning |
Automatic (Push
Button) |
Manual Tuning |
0 - 255 |
Volume Limit |
1 - 20 |
Audio Tone |
1 - 100 |
Signal Peak |
1 - 20 |
Iron Reject |
Off (All Metal)
/ 1 - 10 |
Audio Type |
Quiet / Normal
/ Deep / Boost |
Rx Gain |
1 - 15 |
Motion |
V-Slow / Slow /
Medium / Fast |
Response |
Normal / Inverted |
Stabilizer |
1 - 20 |
|
|
|
Includes
the Following Items |
|
|
|
Pro Treasure Ultimate Accessory
Carry Case With Shoulder Strap
Two Reale Gold Doubloon Replica
Coin
Pro Treasure Finds Bag
Pro Black Leather Waist Pack for
Metal Detecting
Treasure Magazine Collectors Back
Issue
Deluxe two Pocket Cordura Tool Pouch
Pro Series Large Deluxe Carrybag
Minelab Commander Series 15" x 12"
Semi-Elliptical Monoloop Search Coil
Minelab Lithium Ion Battery
|
