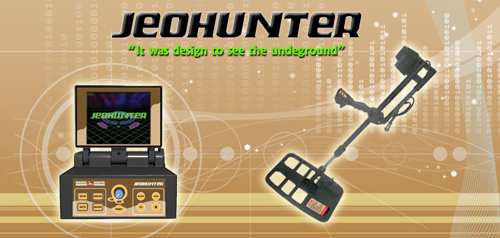

| Makro JeoHunter Deep-3D Gold Metal Detector |
|
 |
|
|
Description |
The JeoHunter 3D Dual Metal Detector System is a complete system designed to meet all of your requirements for locating Gold and other precious targets at extreme depth. The system includes 3 different search coils. It is like owning three metal detectors in one. The JeoHunter 3D Dual System ships complete with the triple coil system. These coils will allow you to uncover Gold and precious metals deeper than any device has ever reached before. The small coil will detect targets up to 12 feet or 4 meters deep. The small coil measures 8.5" x 12" or 210 cm x 315 cm.
The large coil will detect up to up to 40 feet or 12 meters deep. The large coil measures 24" x 39" or 1000 cm x 600 cm. You can quickly and easily search and detect large fields with the Large Search Head. This search coil covers the greatest depths and allows you to cover large areas in the shortest amount of time. The large search head punches down deep in to the earth for deep searching. It will find large Gold and valuable treasures and will ignore small non-valuable metal objects like nails and pull tabs. This coil will give the best results even in the toughest mineral conditions. Advanced target discrimination makes the Makro Deep Search Coil Head different from other brands of detectors that use large search coil heads.
It was designed to see the underground and was charged to show the underground!It is very good at perfectly performing the task it undertakes; perfection is in its nature!
|
Its task to find, regardless of in which environment and under what circumstances the sought target is hid!
|
|
Targets are divided into four categories: Gold, Valuable, Steel and Iron. |
The visual analysis will show you the specific metal you have located. In the example above, the user has located a treasure of Gold. Note the detailed analysis of the target provide by the analysis software built in to the new JeoHunter 3D Dual System. No need for a separate computer or software, everything you need is built right in to the new JeoHunter 3D Dual System. At the click of a button, results are displayed to you instantly in the field.
|
| Locates Both Individual Targets and Large Treasure Caches! |
The Jeo Hunter has the capability to locate both large and small treasures. The advanced design of the unit allows extreme sensitivity to individual targets with the small and medium search coil heads. To locate larger treasure caches, just attach the large search head to achieve depths of up to 12 meters. You will be amazed at the depth and power of the new Jeo Hunter.
|
| Advanced Technology, Yet Easy To Use! |
Both amateur and professional users alike will find that the JeoHunter 3D Dual System is designed with ease of use in mind. The full color visual display monitor and intuitive searching menu design, make this detector easy to understand. This is a refreshing difference from other detectors on the market. Just turn it on and start finding treasure.
|
| Real Time Graphical Image Analysis of the Target - See It With Your Own Eyes! |
The JeoHunter 3D Dual System is one of the most advanced graphical imaging systems available. The system is able to analyze and provide the user with a real time graphical image of the analysis of the target. The three Photos below show the power of the target analysis available with the Jeo Hunter. Once you have located the target, the Jeo Hunter can analyze the target to show the following:
|
Depth of Target
Size of Target
Identification of Target
|
| Accurate Target Depth & Size Analysis |
The detailed analysis report will help you understand how deep and how large the target is before you start digging. The longer the treasure has been buried, the greater the oxidation will be and the greater the depth at which a target can be located.
|
| Full Color Visual Target Analysis |
The full color visual target analysis report will show you the 3 Dimensional image of the target and the type of metal that has been located. If you have located a treasure that is larger than a single object, you will see each of the individual targets displayed on your screen. The type of metal will be displayed in large red letters on the screen as well.
|
| Features |
Jeohunter is a top model in our product range, which has high detector technology used for it and also superior features.
|
| Some of the features and equipment constituting the main features of Jeohunter are provided below. |
Artificial Intelligence Algorithms
Real Time 3D Imaging
Real Time 2D Imaging
Images equivalent to GPRS Technologies
Imaging the Target Forms From Above
Capability to Save the Target Images
Reporting Target Diameter and Depths
High Accuracy in Sorting Metals
Ground Definition and Automatic Setting
Proportioning the Target Intensity by Percentages
Data Library
Digital Signal and High Resolution
Highly Conductive Signal
A unit that thinks and interprets
Preventing False Alarms
High Accuracy in Transmitting Data
Perfect Communication and Operation
Monitor that does not require a laptop
|

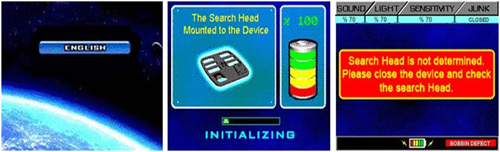

| Large Colour Screen and Animations while turning on |
Jeohunter turns the system data and images into a feast of images with all the details in high resolution due to the large and colour screen it has. All the user has to do in order to enjoy this feast is to turn the ON/OFF switch from "off" to "LCD". After it is switched to LCD, the animated images are formed on the screen with a high speed. 5 seconds later, Jeohunter logo is seen on the screen. The logo remains on the screen for approximately 3 seconds.
|
|
 |
|
| Search Antenna Scan and Antenna Failure Feature |
Jeohunter performs a fast and reliable data scan for possible user errors or applications left incomplete due to its high technology. For example, if the antenna socket is not fully connected to the system input at the antenna connection site, if there is lack of connection or if there is any problem such as a failure etc. in signal transmission, the system detects it immediately and informs the user about the problem as seen in the images. Otherwise, the user will carry out searches in vain with a detector that is not operable, which the user thinks is operable and sending signals, and more importantly the user will be unable to detect any targets that are actually in that zone or area and will maybe even lose the chance of the biggest finding of his life. Thus, it is beyond dispute that such an alarm system is vital in this respect.
|
|
 |
|

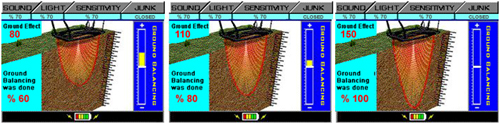

| Ground Definition and Automatic Ground Setting |
Jeohunter enables easy settings scanning the ground structure comfortably even under the most difficult conditions. It provides information by showing the ground data on the screen and then there is no need to make another ground setting for the same or similar ground environments. As may be seen in the images, if the operations necessary for the ground have not been performed or if a search is taking place assuming such settings have been made, then the signal will not penetrate or will be penetrating very poorly into the ground. The first image shows the display with no or insufficient setting. Then, as may be seen until image 5 in an order, the signal sent from the antenna will penetrate into the ground as the ground effect is made up for.
The said ground setting may be provided easily in a few steps with the + and - buttons in the Jeohunter and as it is possible to observe whether the signal penetrates into the soil or not, the risk of searches with signals not penetrating into the ground is eliminated. The final operation of the ground setting made will be taken as the reference by the system and the ground effect is quantified in the display; so an opportunity is provided for automatic scanning with no need for the user to enter another ground setting for the same ground structure the next time.
.
|
|
 |
|
| Note: |
 Before entering any ground settings or at any position, the user may increase or decrease the "accuracy - sound - display light" settings or may benefit from the option to perform a search without seeing the invaluable metals by using the option of accepting and refusing the invaluable metals. What should be done for this purpose is to enter the settings by pressing the settings button on the system board and confirming with - or + buttons. Then the confirmation button is pressed and the general search mode with metal sorting is passed.
|
|
 |
|

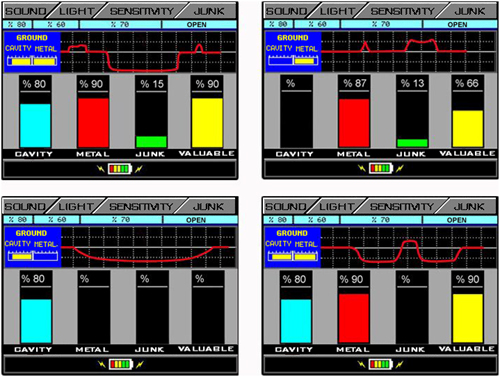

| High Accuracy and Target Creation in Sorting Metals |
 Jeohunter compares the signals from many different systems known up to now in detecting the spaces for detecting and sorting metals and reads the signature spectrum for the targets in signal structure and conveys the data related to the target in the most accurate manner.
Jeohunter creates the target form and has linear bars showing the data for 4 targets at the same time by percentages in a single display. Thanks to this feature, different metals and space and the gold and valuable metals in space can be detected and also percentage data is shown related to the target quantity by proportioning. The images show the formations, target types and proportions related to the fund targets.
|
|
 |
|

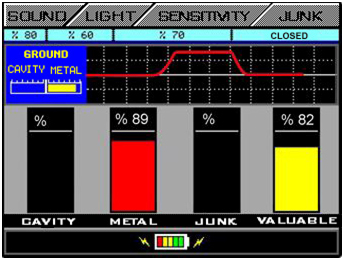

| If we clarify what the oscilloscope displays in the images mean, we will understand the importance of the oscilloscope displays better.
When paid attention, there is a white reference line extending horizontally just in the middle of the oscilloscope window and another red line showing the target effects. If the red line is below the reference line, it means that there is a space. If it is formed on the line, it means that this is a metal and the drawings for both the space and metals give the view of the target from above.
The valuable-invaluable space percentages above the linear bars, on the hand, give the results of these images for the width and intensity effects. |
|

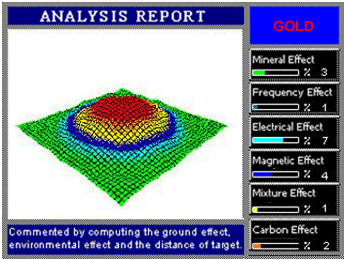

| Real Time 3D Images Equivalent to GPR Technology |
 As known, it is impossible to obtain real-time 3D images in many of the technologies known as ground penetrating radar systems. Moreover, it is impossible to sort metals.
Jeohunter makes real time detections and immediately creates images of these detections. Thanks to this report, the target types and proportions are also communicated in it in addition to the target dimensions.
In order to receive a 3D image report, the user needs to press the scan button on the detected target and attach the search antenna. Upon exit from the target, the analysis report with 3D image will be displayed as soon as the scan button is released. Analysis reports regarding different targets are given in the images.
To make an explanation though the images and reports clearly reveal the results, red means metal; orange, yellow and blue shades on the edges of the metal, on the other hand, show the magnetic field and spaces around the target. For example, the first image shows the target being metal and gold, the other image shows space by 80% and valuable metal by 15% with it, the other image shows invaluable metal by 13% with a second valuable metal accompanying it by 66%, the analysis with blue image shows the space and the one next to it shows valuable target by 90% in space..
|
|

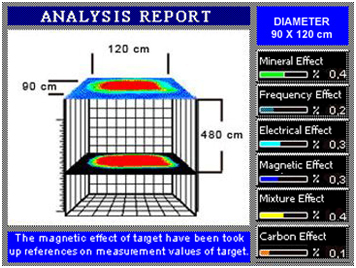

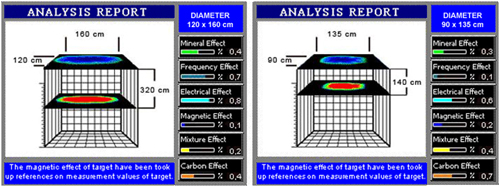

| Image Reporting of Target Diameter and Depths |
 Jeohunter detects the diameter, size and depth of the targets in a surprisingly accurate manner and performs an operation that can is described as difficult and impossible by presenting a report with all the details and images.
to create a target depth report with image, the user should get the antenna close to the starting points of the target signal from four sides of the detected target and should mark the signal starts on the ground; and then should save the data relating to the width and length of the target that appears in the depth window, which appears when the depth button is pressed; the next operation when saving is done is to press the scan button, getting the search antenna up to the end of the signal over the target. At the end of the target, when the scan button is released, the relevant analysis report will be displayed on the screen in real time.
The images show some of the screen shots from the help video file in the system related to the analysis reports for various target depths and sizes and also related to how to measure the target diameters.
|
|
 |
|
 |
|

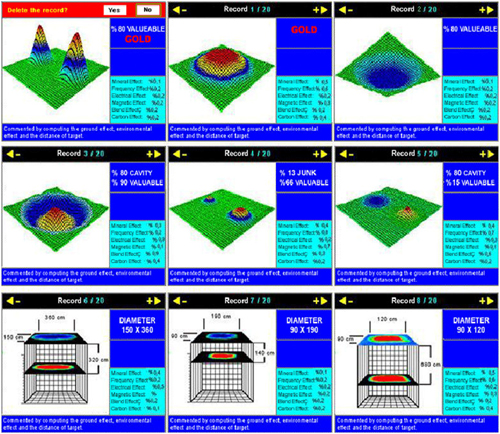

| Saving Target Images and Analysis Reports |
 Jeohunter is capable of archiving the analysis reports with images saved in its library forever in files. The user saves the images containing the detailed analysis reports of the targets that the user wants to save and is offered the advantage of watching and examining them whenever and in any wanted environment on the own colour screen of the Jeohunter with no need for a laptop or similar screens or apparatuses.
The images wanted for saving can be saved pretty easily. All the user has to do for that purpose is to save the analysis report containing the images and details for the detected target by pressing the save button on the system command button, thus with a single operation. Just by pressing and releasing the save button, the contents of the saved images and details are automatically included in the archive and the position number is displayed on the save window.
The user has the opportunity and advantage of watching all the saved images whenever the user wants to by using - and + buttons. The user may also delete the information in the records and may save other images whenever desired. For this purpose, it is sufficient to respond to the question "Do you want to delete?" by scrolling between yes and no using - and + buttons and confirming deletion.
|
|
 |
|
 |
|
 |
|
| One System - Includes Everything You Need To Locate Gold At Extreme Depths! |
Small Head Search Coil for LED System 8.5" x 12" or 210 cm x 315 cm

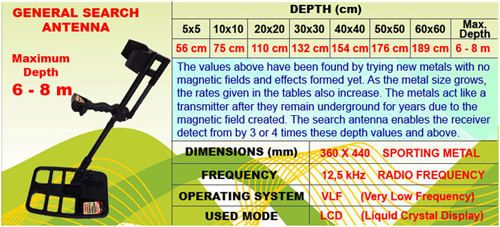

Medium General Detection Head Search Coil 14" x 17" or 360 cm x 440 cm
Large Deep Search Head Search Coil 24" x 39" or 1000 cm x 600 cm
Professional Metal Detector Headphones
Leather Carry Case & Harness For LCD System
Cordura Nylon Carry Bag for Large Deep Search Head
Cordura Nylon Carrying Bag For Detector, LED System & General Detection Head
Rechargeable Lithium Polymer Battery
Universal AC Wall Charger, 100 to 240 Volts, 50 and 60 Hz
US & European Wall Plug Connections Included
Detailed Product Manual
|
